Custom Press Brake Manufacturer
from China

Equipped with an intelligent control system, this bending machine delivers industry-leading dynamic performance in sheet metal bending, significantly enhancing processing efficiency and forming precision.

24H Uninterrupted
Production

Free machine commissioning

Free Sheet Metal Bending Process Test Report

24/7 online service

You can contact us at any time

Worry-free
after-sales service

Smart CNC App Control

Customized & OEM Available

Full Custom Service · Global Agent Partnership

Professional Support · Reliable Bulk Supply

Upper and lower mold system

It allows for the rapid changing of molds of various specifications and is compatible with the bending of diverse sheet materials—such as stainless steel, carbon steel, aluminum, and copper—offering excellent versatility.

Adjustable bending angle

By controlling the downward travel depth of the ram, bending angles ranging from 0° to 180° can be freely adjusted (including right angles, obtuse angles, hem bends, and radius bends).

Rear backgauge positioning

It accommodates bottom bending dies of varying heights, making height adjustments more convenient for bending thick plates and enclosures of diverse specifications; it ensures superior positioning consistency and enhances processing efficiency for complex workpieces.

Precision Transmission, High-Precision Positioning

The CNC electro-hydraulic bending machine’s stop is equipped with a high-precision linear guide. It supports multi-axis linkage control to adapt to customized multi-step bending processes, resulting in fast response, reduced positioning time, and improved overall production efficiency.

±0.05mm

Positioning Accuracy

400mm/s

X-axis Speed

Hydraulic Deflection Compensation Eliminates Errors

Hydraulic crowning enables dynamic adjustment under load, correcting deflection in real time according to bending tonnage. It supports wider compensation range for long & thick plates and high-tonnage processing. Cooperated with electro-hydraulic synchronization system, it guarantees consistent bending angle across the whole workpiece.

High-quality steel structure machine bed

Dual independent servo cylinders

CNC

Intelligent Control System

Adopting a powerful CNC system, it can automatically calculate the total material length of bent workpieces and support 2D touch based graphic programming. Higher consistency in repeated workpiece machining.

High-strength cutting tools

High hardness, integral forging, and resistance to wear and impact; resistant to wear and deformation during long-term, high-volume processing.

Motor for automatic hydraulic
deflection compensation

CNC automatically adjusts worktable crowning to boost bending accuracy for long workpieces. Faster response and wider compensation range deliver superior performance for thick plate and high-tonnage bending.

Explore the Inside of Our Fiber
Laser Cutting Machine

Optimized internal structure with integrated transmission system, rigid machine bed, and intelligent component layout ensures higher stability, precision, and long-term cutting performance.

https://cnlasermax.com/wp-content/uploads/2026/07/7月9日-1.mov
View 3D Demo

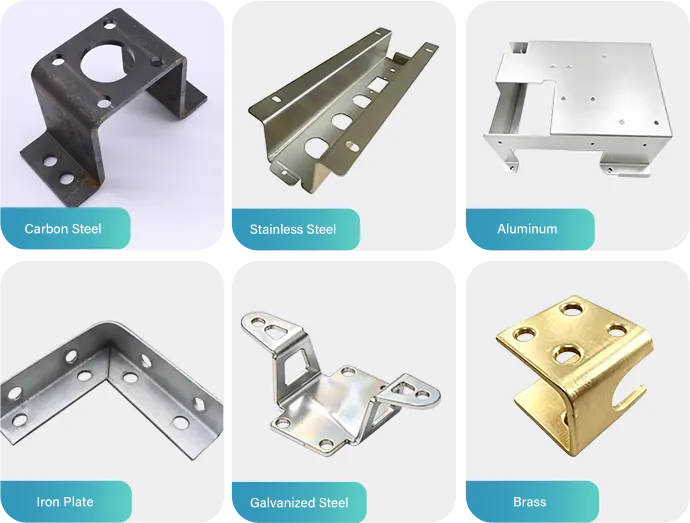

Bending Applications

Discover outstanding bending samples produced by our advanced CNC press brake machines, showcasing high precision, excellent efficiency, and superior forming performance for various metal applications.

Machine. Endless Bending
Possibilities.

Machine Details

TECHNICAL

PARAMETERS

High-performance configuration, stable and efficient operation, meeting various metal bending and forming needs.



Model	Nominal Force (KN)	Worktable Length (mm)	Poles Distance (mm)	Throat Depth (mm)	Max Height (mm)	Power (kw)	Weight (kg)	Dimension LxWxH (mm)
40T/2200	400	2200	1850	230	320	4	2750	2200x1200x1900
80T/2500	800	2500	1990	300	320	7.5	5000	2500x1400x2300
100T/2500	1000	2500	1990	320	350	7.5	6000	2500x1600x2400
200T/3200	2000	3200	2480	320	460	15	11000	3200x1950x2800
300T/4000	3000	4000	2900	400	590	22	18000	4000x2000x3450
400T/5000	4000	5000	3900	400	590	30	24000	5000x2180x3500
600T/6000	6000	6000	4900	400	590	55	50000	6050x4500x3700

Model	Nominal Force (KN)	Worktable Length (mm)	Poles Distance (mm)	Throat Depth (mm)	Max Height (mm)	Power (kw)	Weight (kg)	Dimension LxWxH (mm)
40T/2200	400	2200	1850	230	320	4	2750	2200x1200x1900
80T/2500	800	2500	1990	300	320	7.5	5000	2500x1400x2300
100T/2500	1000	2500	1990	320	350	7.5	6000	2500x1600x2400
200T/3200	2000	3200	2480	320	460	15	11000	3200x1950x2800
300T/4000	3000	4000	2900	400	590	22	18000	4000x2000x3450
400T/5000	4000	5000	3900	400	590	30	24000	5000x2180x3500
600T/6000	6000	6000	4900	400	590	55	50000	6050x4500x3700

Precision Transmission, High-Precision Positioning

Equipped with X and Y axes and featuring a worm gear reducer, lead screw, and guide rail drive, it offers higher precision, better transmission performance, and a higher cost-performance ratio

Hydraulic Deflection Compensation Eliminates Errors

Hydraulic crowning provides dynamic load‑based adjustment for real‑time deflection correction. It offers broad compensation for long thick plates and high‑tonnage bending. Paired with electro‑hydraulic synchronization, it keeps consistent bending angles along the workpiece

CNC Intelligent Control System

Adopting a powerful CNC system, it can automatically calculate the total material length of bent workpieces and support 2D touch based graphic programming.
Higher consistency in repeated workpiece machining

Dual independent Servo cylinders

Dual independent servo cylinders with closed‑loop Y1/Y2 control. Great anti‑eccentric‑load capacity and high synchronization accuracy. It supports single‑side fine‑tuning and tapered bending for consistent angles in mass production, ideal for long & thick plates

CUSTOMER VISIT

Welcome Global Partners to Visit Laser Max

Machine. Endless Bending Possibilities

Explore high-quality bending samples created by our advanced fiber bending machines, delivering precision, efficiency, and outstanding results across various materials.
