Custom Press Brake Manufacturer from China
Equipped with an intelligent control system, this bending machine delivers industry-leading dynamic performance in sheet metal bending, significantly enhancing processing efficiency and forming precision.
24H Uninterrupted Production
Free machine commissioning
Free Sheet Metal Bending Process Test Report
24/7 online service
You can contact us at any time
Worry-free after-sales service
Smart CNC App Control
Customized & OEM Available
Full Custom Service · Global Agent Partnership
Professional Support · Reliable Bulk Supply
描述
Custom Press Brake Manufacturer
from China
Equipped with an intelligent control system, this bending machine delivers industry-leading dynamic performance in sheet metal bending, significantly enhancing processing efficiency and forming precision.
24H Uninterrupted
Production
Free machine commissioning
Free Sheet Metal Bending Process Test Report
24/7 online service
You can contact us at any time
Worry-free
after-sales service
Smart CNC App Control
Customized & OEM Available
Full Custom Service · Global Agent Partnership
Professional Support · Reliable Bulk Supply

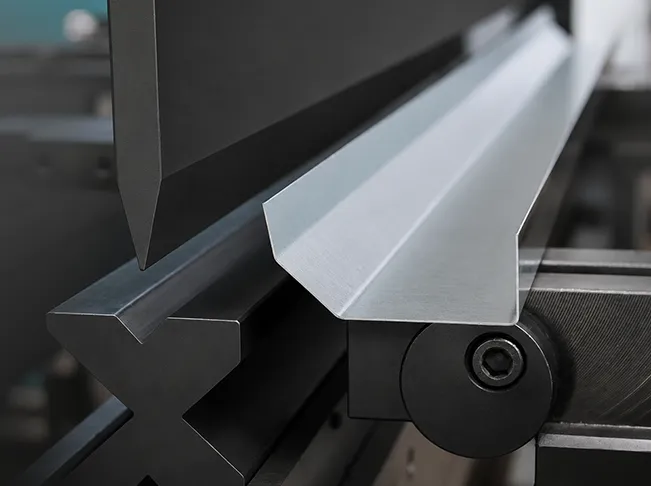

Upper and lower mold system
It allows for the rapid changing of molds of various specifications and is compatible with the bending of diverse sheet materials—such as stainless steel, carbon steel, aluminum, and copper—offering excellent versatility.
Adjustable bending angle
By controlling the downward travel depth of the ram, bending angles ranging from 0° to 180° can be freely adjusted (including right angles, obtuse angles, hem bends, and radius bends).
Rear backgauge positioning
The backgauge supports the sheet edge to ensure stable control of flange dimensions; it features vertical adjustment and lateral retraction to clear the tooling, offers multi-axis adjustability, accommodates various bending processes, and guarantees workpiece precision.

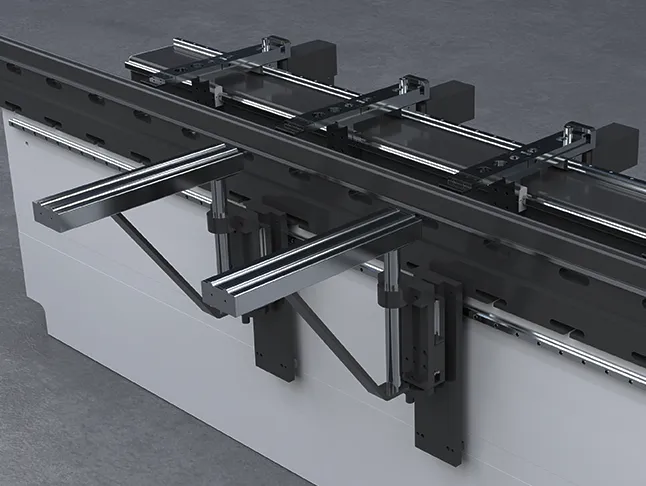

Precision Transmission, High-Precision Positioning
Equipped with X and Y axes and featuring a worm gear reducer, lead screw, and guide rail drive, it offers higher precision, better transmission performance, and a higher cost-performance ratio.
±0.05mm
Positioning Accuracy
400mm/s
X-axis Speed

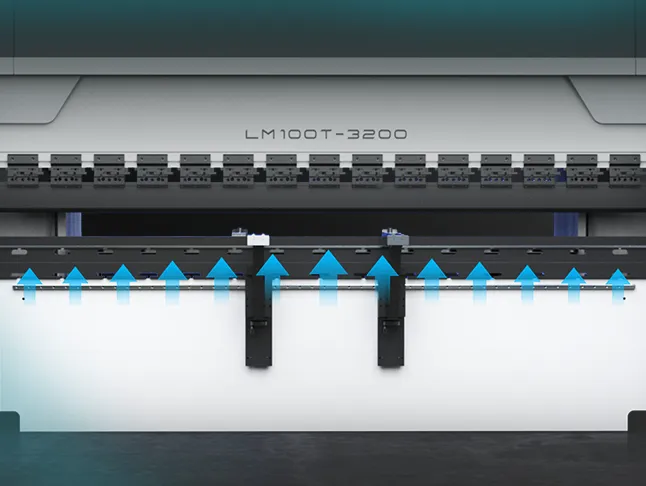

Deflection compensation eliminates angular error
Compensating for the deflection of the upper slide during bending—based on the workpiece length, plate thickness, and bending angle, the processing program automatically calculates the compensation value to counteract the slight deformation caused by the force exerted on the machine, thereby ensuring consistent bending precision.
High-quality steel structure machine bed
Safety guard for side drive mechanism

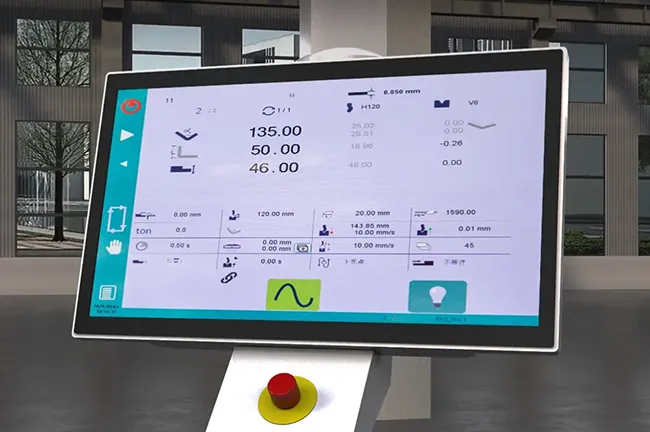

CNC
Intelligent Control System
Adopting a powerful CNC system, it can automatically calculate the total material length of bent workpieces and support 2D touch based graphic programming. Higher consistency in repeated workpiece machining.
Hydraulic oil pump drive motor
Provides stable power
The stable motor is particularly well-suited for the rapid bending of thin sheets, fast power response, and smooth slider movement switching; standard universal structure for simple maintenance.
Explore the Inside of Our Fiber
Laser Cutting Machine
Optimized internal structure with integrated transmission system, rigid machine bed, and intelligent component layout ensures higher stability, precision, and long-term cutting performance.
https://cnlasermax.com/wp-content/uploads/2026/07/7月9日-1.mov
View 3D Demo

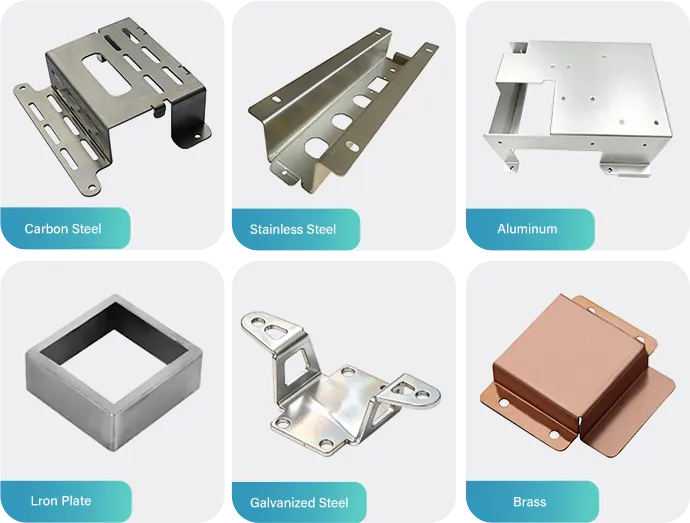

Bending Applications
Machine. Endless Bending
Possibilities.
Discover outstanding bending samples produced by our advanced CNC press brake machines, showcasing high precision, excellent efficiency, and superior forming performance for various metal applications.
Machine Details
TECHNICAL
PARAMETERS
High-performance configuration, stable and efficient operation, meeting various metal bending and forming needs.
| Model | Nominal Force (KN) |
Worktable Length (mm) | Poles Distance (mm) | Throat Depth (mm) | Max Height (mm) | Power (kw) | Weight (kg) |
Dimension LxWxH (mm) |
|---|---|---|---|---|---|---|---|---|
| 40T/2200 | 400 | 2200 | 1850 | 230 | 320 | 4 | 2750 | 2200x1200x1900 |
| 80T/2500 | 800 | 2500 | 1990 | 300 | 320 | 7.5 | 5000 | 2500x1400x2300 |
| 100T/2500 | 1000 | 2500 | 1990 | 320 | 350 | 7.5 | 6000 | 2500x1600x2400 |
| 200T/3200 | 2000 | 3200 | 2480 | 320 | 460 | 15 | 11000 | 3200x1950x2800 |
| 300T/4000 | 3000 | 4000 | 2900 | 400 | 590 | 22 | 18000 | 4000x2000x3450 |
| 400T/5000 | 4000 | 5000 | 3900 | 400 | 590 | 30 | 24000 | 5000x2180x3500 |
| 600T/6000 | 6000 | 6000 | 4900 | 400 | 590 | 55 | 50000 | 6050x4500x3700 |
| Model | Nominal Force (KN) |
Worktable Length (mm) | Poles Distance (mm) | Throat Depth (mm) | Max Height (mm) | Power (kw) | Weight (kg) |
Dimension LxWxH (mm) |
|---|---|---|---|---|---|---|---|---|
| 40T/2200 | 400 | 2200 | 1850 | 230 | 320 | 4 | 2750 | 2200x1200x1900 |
| 80T/2500 | 800 | 2500 | 1990 | 300 | 320 | 7.5 | 5000 | 2500x1400x2300 |
| 100T/2500 | 1000 | 2500 | 1990 | 320 | 350 | 7.5 | 6000 | 2500x1600x2400 |
| 200T/3200 | 2000 | 3200 | 2480 | 320 | 460 | 15 | 11000 | 3200x1950x2800 |
| 300T/4000 | 3000 | 4000 | 2900 | 400 | 590 | 22 | 18000 | 4000x2000x3450 |
| 400T/5000 | 4000 | 5000 | 3900 | 400 | 590 | 30 | 24000 | 5000x2180x3500 |
| 600T/6000 | 6000 | 6000 | 4900 | 400 | 590 | 55 | 50000 | 6050x4500x3700 |
Precision Transmission, High-Precision Positioning
Equipped with X and Y axes and featuring a worm gear reducer, lead screw, and guide rail drive, it offers higher precision, better transmission performance, and a higher cost-performance ratio
Deflection compensation Eliminates angular error
It compensates upper‑slide deflection during bending. Based on workpiece length, plate thickness and bending angle, the program automatically calculates compensation values to offset machine‑induced minor deformation and ensure consistent bending precision
CNC Intelligent Control System
Adopting a powerful CNC system, it can automatically calculate the total material length of bent workpieces and support 2D touch based graphic programming.
Higher consistency in repeated workpiece machining
Upper and lower Mold system
It allows for the rapid changing of molds of various specifications and is compatible with the bending of diverse sheet materials—such as stainless steel, carbon steel, aluminum, and copper—offering excellent versatility
CUSTOMER VISIT
Welcome Global Partners to Visit Laser Max
Machine. Endless Bending Possibilities
Explore high-quality bending samples created by our advanced fiber bending machines, delivering precision, efficiency, and outstanding results across various materials.
Upper and lower mold system
It allows for the rapid changing of molds of various specifications and is compatible with the bending of diverse sheet materials—such as stainless steel, carbon steel, aluminum, and copper—offering excellent versatility.
Adjustable bending angle
By controlling the downward travel depth of the ram, bending angles ranging from 0° to 180° can be freely adjusted (including right angles, obtuse angles, hem bends, and radius bends).
Rear backgauge positioning
The backgauge supports the sheet edge to ensure stable control of flange dimensions; it features vertical adjustment and lateral retraction to clear the tooling, offers multi-axis adjustability, accommodates various bending processes, and guarantees workpiece precision.
Precision Transmission, High-Precision Positioning
Equipped with X and Y axes and featuring a worm gear reducer, lead screw, and guide rail drive, it offers higher precision, better transmission performance, and a higher cost-performance ratio.
±0.05mm
Positioning Accuracy
400mm/s
X-axis Speed
Deflection compensation eliminates angular error
Compensating for the deflection of the upper slide during bending—based on the workpiece length, plate thickness, and bending angle, the processing program automatically calculates the compensation value to counteract the slight deformation caused by the force exerted on the machine, thereby ensuring consistent bending precision.
High-quality steel structure machine bed
Safety guard for side drive mechanism
CNC
Intelligent Control System
Adopting a powerful CNC system, it can automatically calculate the total material length of bent workpieces and support 2D touch based graphic programming. Higher consistency in repeated workpiece machining.
Hydraulic oil pump drive motor Provides stable power
The stable motor is particularly well-suited for the rapid bending of thin sheets, fast power response, and smooth slider movement switching; standard universal structure for simple maintenance.
Explore the Inside of Our Fiber Laser Cutting Machine
Optimized internal structure with integrated transmission system, rigid machine bed, and intelligent component layout ensures higher stability, precision, and long-term cutting performance.
Bending Applications
Machine. Endless Bending Possibilities.
Discover outstanding bending samples produced by our advanced CNC press brake machines, showcasing high precision, excellent efficiency, and superior forming performance for various metal applications.
Machine Details
TECHNICAL
PARAMETERS
High-performance configuration, stable and efficient operation, meeting various metal bending and forming needs.
| Model | Nominal Force (KN) | Worktable Length (mm) | Poles Distance (mm) | Throat Depth (mm) | Max Height (mm) | Power (kw) | Weight (kg) | Dimension LxWxH (mm) |
|---|---|---|---|---|---|---|---|---|
| 40T/2200 | 400 | 2200 | 1850 | 230 | 320 | 4 | 2750 | 2200x1200x1900 |
| 80T/2500 | 800 | 2500 | 1990 | 300 | 320 | 7.5 | 5000 | 2500x1400x2300 |
| 100T/2500 | 1000 | 2500 | 1990 | 320 | 350 | 7.5 | 6000 | 2500x1600x2400 |
| 200T/3200 | 2000 | 3200 | 2480 | 320 | 460 | 15 | 11000 | 3200x1950x2800 |
| 300T/4000 | 3000 | 4000 | 2900 | 400 | 590 | 22 | 18000 | 4000x2000x3450 |
| 400T/5000 | 4000 | 5000 | 3900 | 400 | 590 | 30 | 24000 | 5000x2180x3500 |
| 600T/6000 | 6000 | 6000 | 4900 | 400 | 590 | 55 | 50000 | 6050x4500x3700 |
| Model | Nominal Force (KN) | Worktable Length (mm) | Poles Distance (mm) | Throat Depth (mm) | Max Height (mm) | Power (kw) | Weight (kg) | Dimension LxWxH (mm) |
|---|---|---|---|---|---|---|---|---|
| 40T/2200 | 400 | 2200 | 1850 | 230 | 320 | 4 | 2750 | 2200x1200x1900 |
| 80T/2500 | 800 | 2500 | 1990 | 300 | 320 | 7.5 | 5000 | 2500x1400x2300 |
| 100T/2500 | 1000 | 2500 | 1990 | 320 | 350 | 7.5 | 6000 | 2500x1600x2400 |
| 200T/3200 | 2000 | 3200 | 2480 | 320 | 460 | 15 | 11000 | 3200x1950x2800 |
| 300T/4000 | 3000 | 4000 | 2900 | 400 | 590 | 22 | 18000 | 4000x2000x3450 |
| 400T/5000 | 4000 | 5000 | 3900 | 400 | 590 | 30 | 24000 | 5000x2180x3500 |
| 600T/6000 | 6000 | 6000 | 4900 | 400 | 590 | 55 | 50000 | 6050x4500x3700 |
Precision Transmission, High-Precision Positioning
Equipped with X and Y axes and featuring a worm gear reducer, lead screw, and guide rail drive, it offers higher precision, better transmission performance, and a higher cost-performance ratio
Deflection compensation Eliminates angular error
It compensates upper‑slide deflection during bending. Based on workpiece length, plate thickness and bending angle, the program automatically calculates compensation values to offset machine‑induced minor deformation and ensure consistent bending precision
CNC Intelligent Control System
Adopting a powerful CNC system, it can automatically calculate the total material length of bent workpieces and support 2D touch based graphic programming. Higher consistency in repeated workpiece machining
Upper and lower Mold system
It allows for the rapid changing of molds of various specifications and is compatible with the bending of diverse sheet materials—such as stainless steel, carbon steel, aluminum, and copper—offering excellent versatility
CUSTOMER VISIT
Welcome Global Partners to Visit Laser Max
Machine. Endless Bending Possibilities
Explore high-quality bending samples created by our advanced fiber bending machines, delivering precision, efficiency, and outstanding results across various materials.
