Custom Laser Cutting Machine
Manufacturer from China

It adopts high-performance bus servo motors to achieve the absolute leading dynamic performance. Significantly improving processing efficiency to ensure that every second you invest is creating value.

24H Uninterrupted
Production

Flexible Custom Cutting Power

Flexible cutting power for every material and need.

Wireless Hand Remote

Real-time adjust speed, gas flow and cutting head

2 Years Full Machine Warranty

Smart CNC App Control

Advanced Cooling System, Stable Performance

S&A Dual-Circuit Chiller・Precise Cooling for Source & Optics
Lower Thermal Stress・Longer Machine Service Life

Traverse Anti-collision

Equipped with an advanced anti-collision system, the laser head automatically detects obstacles and adjusts movement in real time. It reduces the risk of damage, improves cutting stability, and ensures continuous high-precision processing

Auto Layout & Nesting

The intelligent nesting system automatically arranges cutting paths according to material shape and size, reducing waste while optimizing production efficiency. Achieve faster processing, higher utilization, and more economical operation.

Intelligent Edge Finding

With intelligent edge recognition technology, the laser system quickly identifies material boundaries and automatically adjusts the cutting position. It minimizes manual alignment errors and guarantees consistent accuracy for every workpiece.

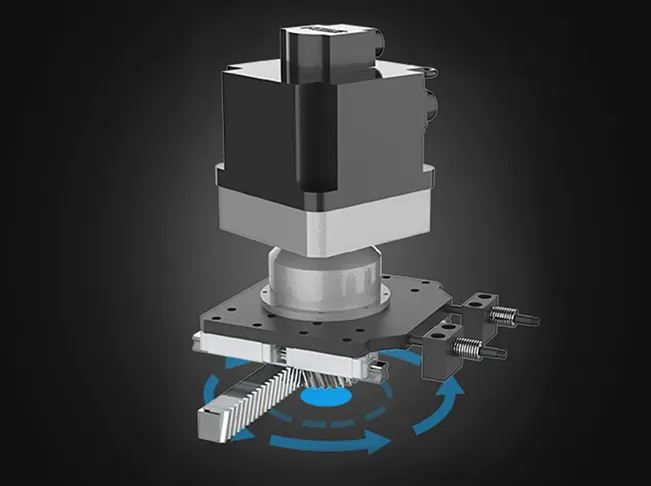

Highly Precise Transmission Structure

Using transmission system with ultra-high precision, make the conveying accuracy of the plate be controlled within ±0.5mm, which can maintain higher accuracy

±0.03mm

Positioning Accuracy

≤1.5mm/m²

Flatness After Leveling

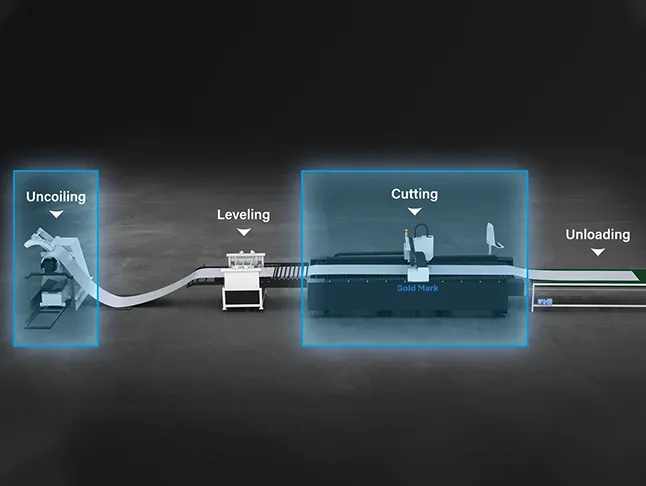

Fully Automated Integrated Workflow

The machine has four functions, including uncoiling, feeding, cutting and blanking, and is updated from single cutting to one-stop processing line.Once cyclic feeding is activated, cutting proceeds automatically without manual intervention, saving labor time.Fixed parameters and one-touch startup ensure simple, effortless operation.

Double-roll Loading / Quadruple Efficiency

Stable, efficient, and easy-to-maintain structure

±0.05 mm
Precision Cutting
Thin Plates

With advanced equipment and exquisite technology, this machine can perfectly balance cutting quality, speed, and processing costs to meet the precision cutting of thin metal plates including carbon steel, stainless steel, etc., with smooth and burr free cutting surfaces.

Deep Cutting Capability

High-energy laser performance combined with an optimized slat structure delivers efficient thick plate processing with excellent stability and edge quality.

50%Less Slag Accumulation with Optimized Slat Bed

Scientifically optimized blade spacing and a corrosion-resistant worktable reduce slag buildup, improve cutting stability, and make routine maintenance faster and easier.

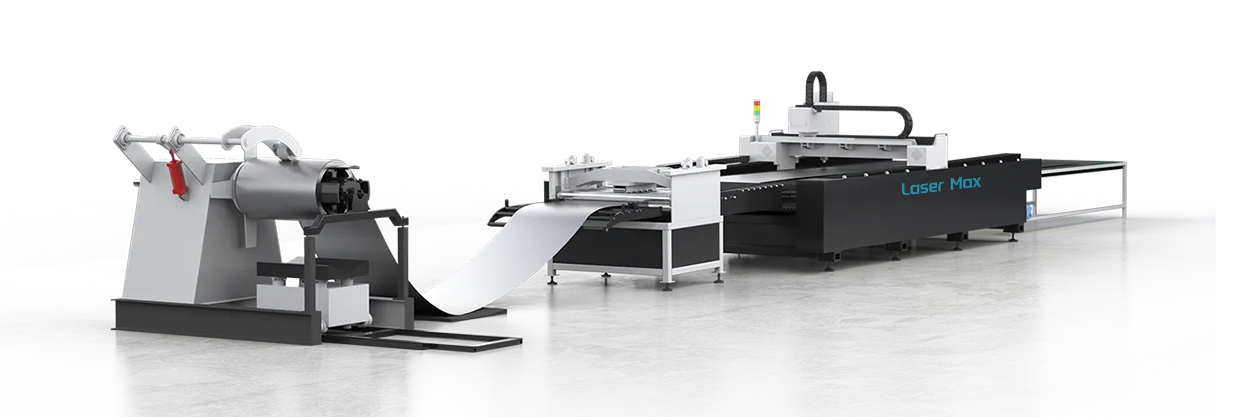

Explore the Inside of Our Fiber
Laser Cutting Machine

Optimized internal structure with integrated transmission system, rigid machine bed, and intelligent component layout ensures higher stability, precision, and long-term cutting performance.

https://cnlasermax.com/wp-content/uploads/2026/07/7月9日-1.mov
View 3D Demo

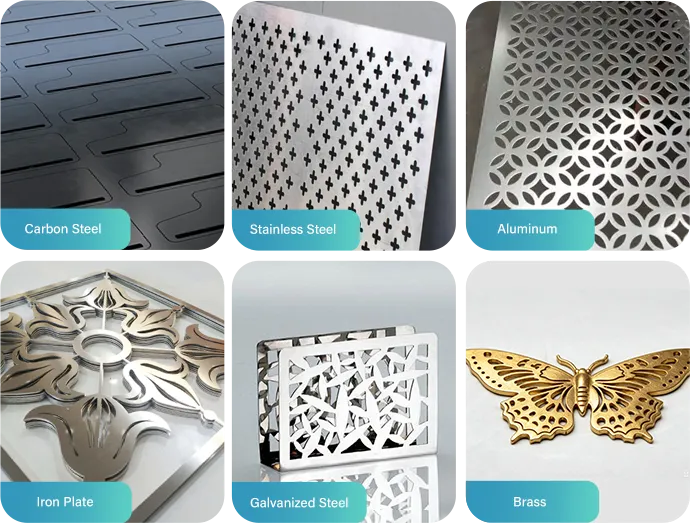

Cutting Applications

Machine. Endless Cutting
Possibilities.

Explore high-quality cutting samples created by our advanced fiber laser cutting machines, delivering precision, efficiency, and outstanding results across various materials.

Machine Details

TECHNICAL

PARAMETERS

High-performance configuration, stable and efficient operation, to meet a variety of cutting and engraving needs.

Model	LM-3015R	LM-4020R
Laser Power (W)	1500/2000/3000/6000
Working Area (mm)	3050×1530	4050×2030
Coiled Material Inner Diameter	Ф470mm-Ф530mm/Ф570mm-Ф630mm
Maximum Outer Diameter Of Coiled Material	Ф1300mm
Coiled Material Width	0-1300mm
Coiled Material Thickness	0.8~3mm(Carbon Steel)/0.8~2mm(Stainless Steel)
Maximum material weight	10T

Model	LM-3015R	LM-4020R
Laser Power (W)	1500/2000/3000/6000
Working Area (mm)	3050×1530	4050×2030
Coiled Material Inner Diameter	Ф470mm-Ф530mm/Ф570mm-Ф630mm
Maximum Outer Diameter Of Coiled Material	Ф1300mm
Coiled Material Width	0-1300mm
Coiled Material Thickness	0.8~3mm(Carbon Steel)/0.8~2mm(Stainless Steel)
Maximum material weight	10T

Fully Automated Integrated Workflow

This machine integrates uncoiling, feeding, cutting and blanking, upgraded to a one‑stop processing line from single‑cut mode. Enable cyclic feeding for fully automatic cutting without manual work to save labor. Preset parameters and one‑touch start for easy operation

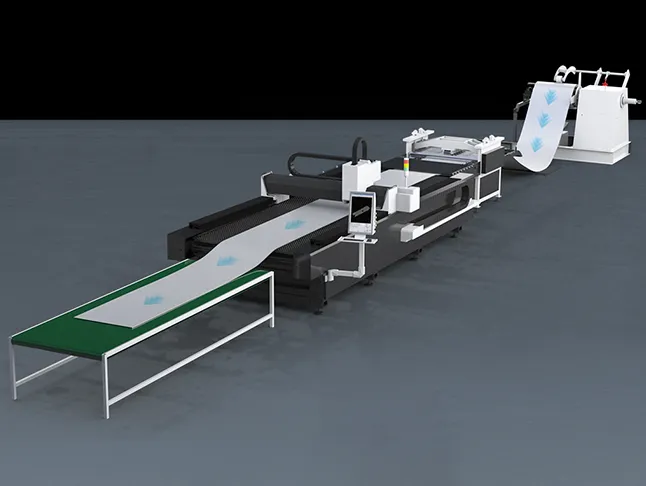

High production efficiency Stable cutting quality

Continuous coil processing is suitable for mass production and increases output speed. Cutting with standardized parameters ensures consistent workpiece dimensions and reduces the rate of defective products

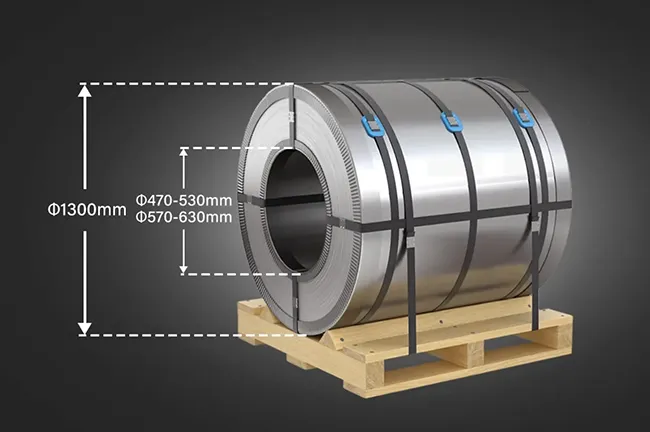

Double-roll Loading Quadruple Efficiency

This machine can handle single coil weight up to 10 tons. Adopting double‑roll alternate continuous working structure, it avoids frequent coil‑changing downtime. Realize long‑term non‑stop running, which greatly boosts throughput and effectively doubles overall production efficiency for mass‑volume processing

Highly Precise Transmission Structure

Equipped with an ultra‑high‑precision transmission system, the machine keeps sheet feeding accuracy within ±0.5mm. Stable precision is maintained even during long‑time continuous mass production, effectively reducing dimensional deviations of finished workpieces
